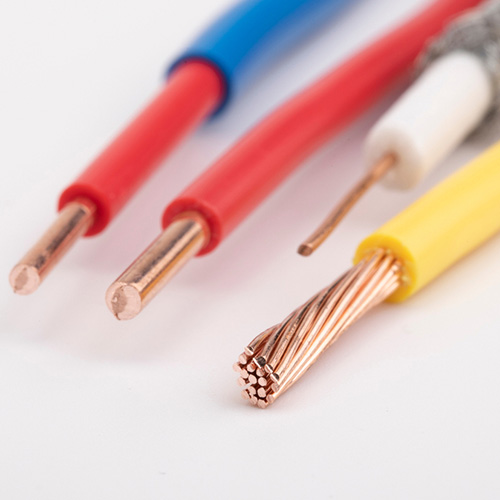

Single Core Copper Cables
For Fixed Wiring (Multi Strand)
Construction
- Copper : Plain Annealed High Conductivity Copper Conductors as per IS:8130
- Insulation : PVC Compound Suitable for Maximum continuous conductor operating temperature of 70degree,type-A conforming to the requirements of IS:5831
- Core Colors : Red,Black,Yellow,Blue,White & Grey.
- Application : Single Core Copper Cables for Fixed Wiring (Multi Strand) is used in Domestic/Industrial wiring.
- Packing : Packed in standard length of 45/90/180/270 Meters.However cables can also be supplied in longer lengths.
| Normal Cross Sectional Area of Copper(Sq mm) | Copper Conductor Size(mm) | Normal Thickness of Insulation(mm) | Overall Diameter(Maximum)mm | Conductor Resistance at 20(Max)ohms/Km |
|---|---|---|---|---|
| 1.0 | 14/0.30 | 0.7 | 3.2 | 18.1 |
| 1.5 | 22/0.30 | 0.7 | 3.4 | 12.1 |
| 2.5 | 36/0.30 | 0.8 | 4.2 | 7.41 |
| 4.0 | 56/0.30 | 0.8 | 4.8 | 4.61 |
| 6.0 | 84/0.30 | 0.8 | 5.6 | 3.08 |
| 10.0 | 80/0.40 | 1.0 | 7.0 | 1.83 |
| 16.0 | 126/0.40 | 1.0 | 8.2 | 1.15 |
| 25.0 | 198/0.40 | 1.2 | 10.0 | 0.727 |
| 35.0 | 278/0.40 | 1.2 | 11.5 | 0.524 |
| 50.0 | 254/0.50 | 1.4 | 13.0 | 0.387 |
| 70.0 | 356/0.50 | 1.4 | 15.0 | 0.268 |
| 95.0 | 483/0.50 | 1.6 | 17.5 | 0.193 |
| 120.0 | 611/0.50 | 1.6 | 19.0 | 0.153 |
| 150.0 | 763/0.50 | 1.8 | 21.0 | 0.124 |
| 185.0 | 942/0.50 | 2.0 | 23.5 | 0.0991 |
