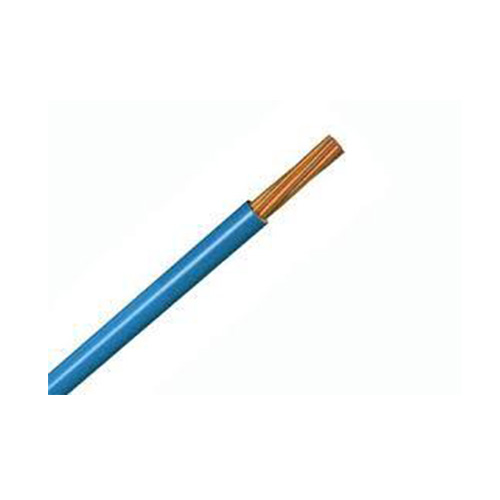

Single Core Copper Cables for Fixed Wiring
Specification : As Per BS : 2004
Construction
- Copper : Plain Annealed High Conductivity Copper Conductors as per BS:2004
- Insulation : PVC Compound conforming to type 1 of BS 6746.
- Core Colors : Red , Black , Yellow , Blue , white , Grey.Other than these colours any colour shall be used permissible as agreed between the purchase and the supplier.
- Application : Single Core Copper Cables for fixed Wiring are used in Domestic/Industrial wiring.
- Packing : Packed in standard length of 90/100 Meters.However cables can also be supplied in longer lengths.
| No.& Dia. of Wires (Inch) | No.& Size of Wires (SWG) | No. & Diameter of Wire mm | Nominal Thickness of Insulation(mm) | Approx.Overall Diameter mm | Conductor Resistance at 20(Max)ohms/Km |
|---|---|---|---|---|---|
| 1/0.044 | 1/18 | 1/1.12 | 1.0 | 3.1 | 18.4 |
| 3/0.029 | 3/22 | 3/0.73 | 1.0 | 3.9 | 14.4 |
| 3/0.036 | 3/20 | 3/0.91 | 1.0 | 3.9 | 9.5 |
| 7/0.029 | 7/22 | 7/0.73 | 1.1 | 4.4 | 6.3 |
| 7/0.036 | 7/20 | 7/0.91 | 1.2 | 5.1 | 4.0 |
| 7/0.044 | 7/18 | 7/1.12 | 1.2 | 5.1 | 2.7 |
| 7/0.064 | 7/16 | 7/1.62 | 1.3 | 7.5 | 1.27 |
| 19/0.044 | 19/18 | 19/1.12 | 1.3 | 8.2 | 0.983 |
| 19/0.064 | 19/16 | 19/1.62 | 1.5 | 11.1 | 0.468 |
| 1/0.044 | 1/18 | 1/1.12 | 1.0 | 3.1 | 18.4 |
| 37/0.064 | 37/16 | 37/1.62 | 1.6 | 14.5 | 0.246 |
