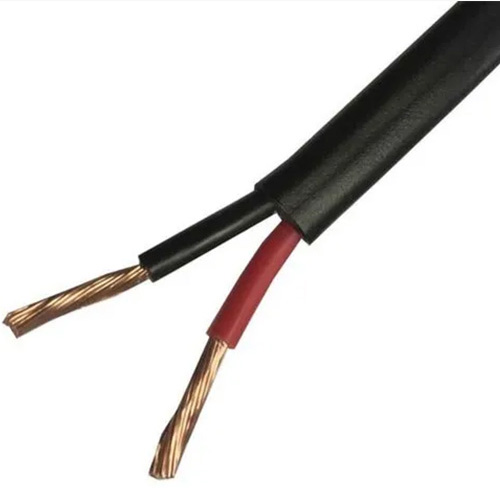

Normal Cross Sectional Area of Copper(Sq mm) | Copper Conductor Size(mm) | Nominal Thickness of Insulation(mm) | Nominal Thickness of Sheath(mm) | Overall Diameter(Maximum)mm | Conductor Resistance at 20(Max)ohms/Km |
---|---|---|---|---|---|
0.50 | 16/0.20 | 0.6 | 0.9 | 4.9 X 7.2 | 39.0 |
0.75 | 24/0.20 | 0.6 | 0.9 | 5.2 X 7.8 | 26.0 |
1.00 | 32/0.20 | 0.6 | 0.9 | 5.4 X 8.0 | 19.5 |
1.50 | 48/0.20 | 0.6 | 0.9 | 5.6 X 8.6 | 13.3 |
2.50 | 80/0.20 | 0.7 | 1.0 | 6.6 X 10.5 | 7.98 |
4.0 | 128/0.20 | 0.8 | 1.0 | 7.4 X 12.0 | 4.95 |
