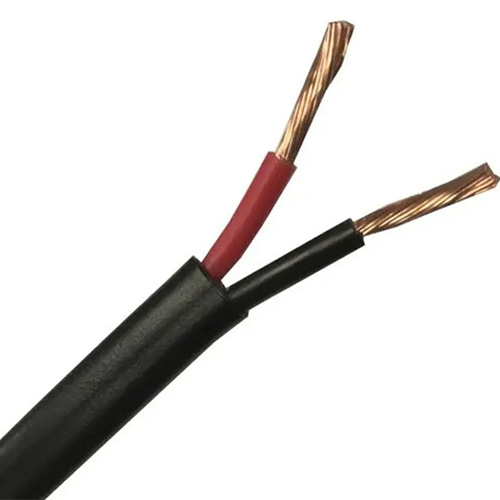

Normal Cross Sectional Area of Copper(Sq mm) | Copper Conductor Size(mm) | Nominal Thickness of Insulation(mm) | Nominal Thickness of Sheath(mm) | Overall Diameter(Maximum)mm | Conductor Resistance at 20(Max)ohms/Km |
---|---|---|---|---|---|
1.0 | 14/0.30 | 0.6 | 0.9 | 7.8 X 5.0 | 18.1 |
1.5 | 22/0.30 | 0.6 | 0.9 | 8.4 X 5.4 | 12.1 |
2.5 | 36/0.30 | 0.7 | 1.0 | 10.0 X 6.4 | 7.41 |
4.0 | 56/0.30 | 0.8 | 1.0 | 11.5 X 7.2 | 4.61 |
6.0 | 84/0.30 | 0.8 | 1.1 | 13.0 X 8.0 | 3.08 |
